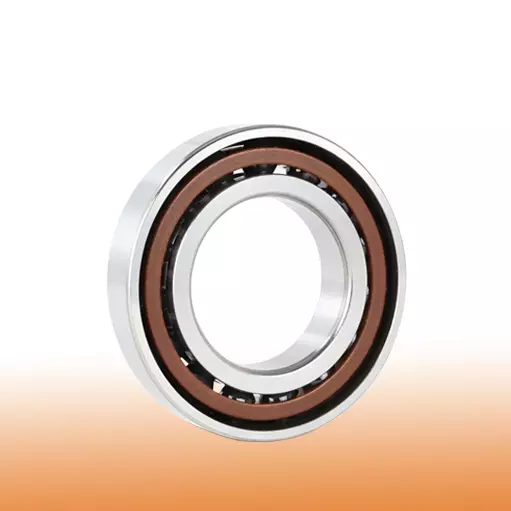

B 7000 E-T-P4S-UL
Ölçü: 10x26x8
Çekilmiş çanak makaralı kavrama HF0612, tek yönde yüksek torkları iletir.
| Inside Ø (mm): | 10 |
|---|---|
| Outside Ø (mm): | 26 |
| Width (mm): | 8 |
| Tolerance for inside-Ø (mm): | 0/-0,004 |
| Tolerance for outside-Ø (mm): | 0/-0,005 |
| Tolerance for width (mm): | 0/-0,04 |
| Tolerance for shaft da (mm): | 0,15/-0,15 |
| Contact Angle: | 25° |
| Rows Of Balls: | single row |
| Seal: | open |
| Ring Material: | Chrome Steel |
| Rolling Element Material: | Chrome Steel |
| Cage Material: | Phenolic Resin |
| Lubrication: | not greased, not oiled, preserved with Quaker Ferrocote 5856 BF T1 |
| Magnetic: | yes |
| Product weight: | 0,0200Kg |

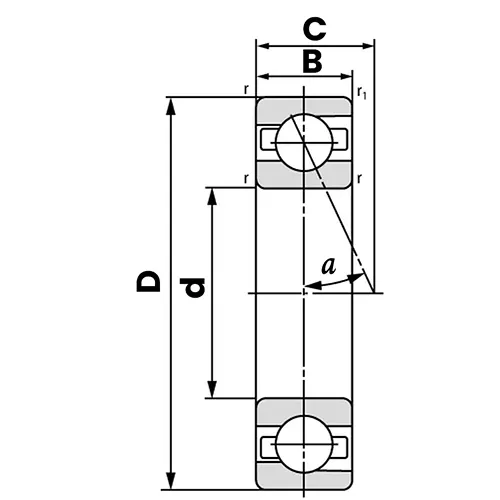

| Typ | Shaft -Ø in mm | Dimensions in mm | contact angle | Weight (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | B | c | Da | da | r(min) | r1(min) | ra(max) | ra1(max) | ||||
| B7000 | 10 | 26 | 8 | 8.2 | 22 | 14 | 0.3 | 0.3 | 0.3 | 0.1 | 25° | 0.02 |
| B7001 | 12 | 28 | 8 | 8.7 | 24.5 | 15.5 | 0.3 | 0.3 | 0.3 | 0.1 | 25° | 0.021 |
| B7002 | 15 | 32 | 9 | 10 | 28 | 19 | 0.3 | 0.2 | 0.3 | 0.1 | 25° | 0.028 |
| B7003 | 17 | 35 | 10 | 11.1 | 31 | 21 | 0.4 | 0.3 | 0.3 | 0.1 | 25° | 0.039 |
| B7004 | 20 | 42 | 12 | 13.2 | 37 | 25 | 0.6 | 0.3 | 0.6 | 0.3 | 25° | 0.067 |
| B7005 | 25 | 47 | 12 | 14.4 | 42 | 30 | 0.6 | 0.3 | 0.6 | 0.3 | 25° | 0.075 |
| B7006 | 30 | 55 | 13 | 16.5 | 49 | 36 | 1 | 0.6 | 1 | 0.3 | 25° | 0.108 |
| B7007 | 35 | 62 | 14 | 18.3 | 56 | 41 | 1 | 0.6 | 1 | 0.3 | 25° | 0.153 |
| B7008 | 40 | 68 | 15 | 20.1 | 62 | 46 | 1 | 0.6 | 1 | 0.3 | 25° | 0.188 |
| B7009 | 45 | 75 | 16 | 22 | 69 | 51 | 1 | 0.6 | 1 | 0.3 | 25° | 0.239 |
| B7010 | 50 | 80 | 16 | 23.2 | 74 | 56 | 1 | 0.6 | 1 | 0.3 | 25° | 0.254 |
| B7011 | 55 | 90 | 18 | 25.9 | 83 | 62 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.377 |
| B7012 | 60 | 95 | 18 | 27.1 | 88 | 67 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.401 |
| B7013 | 65 | 100 | 18 | 28.2 | 93 | 72 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.426 |
| B7014 | 70 | 110 | 20 | 31 | 102 | 77 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.577 |
| B7015 | 75 | 115 | 20 | 32.4 | 107 | 82 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.608 |
| B7016 | 80 | 125 | 22 | 34.9 | 117 | 88 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.836 |
| B7017 | 85 | 130 | 22 | 36.1 | 122 | 93 | 1.1 | 0.6 | 1 | 0.6 | 25° | 0.878 |
| B7018 | 90 | 140 | 24 | 38.8 | 131 | 100 | 1.5 | 0.6 | 1.5 | 0.6 | 25° | 1.13 |
